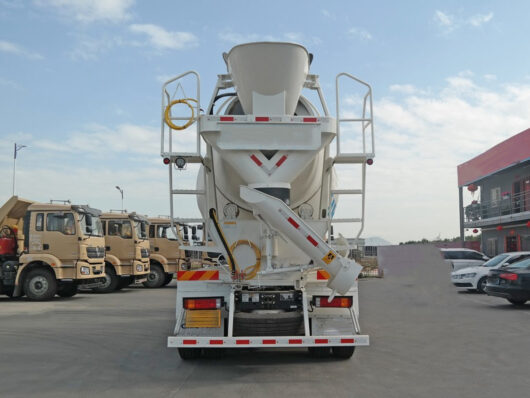

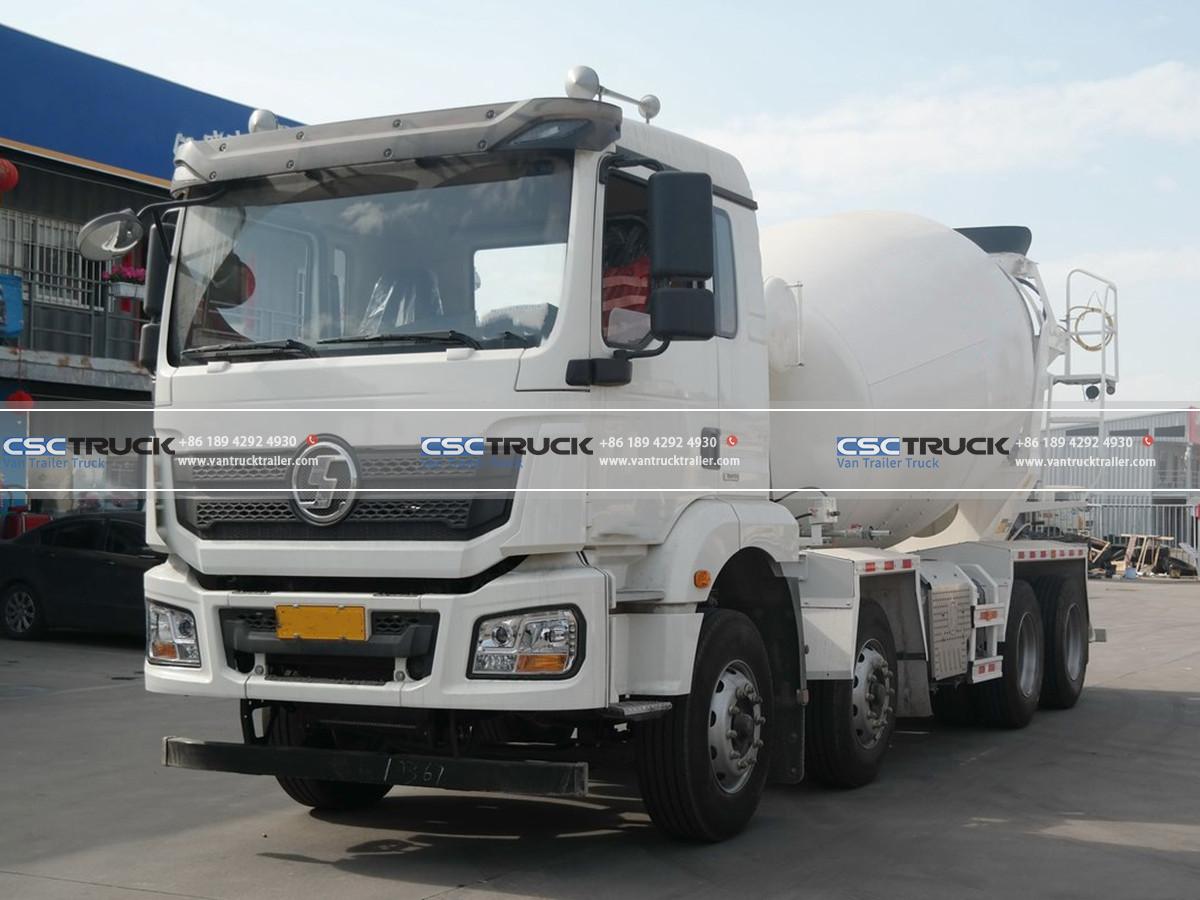

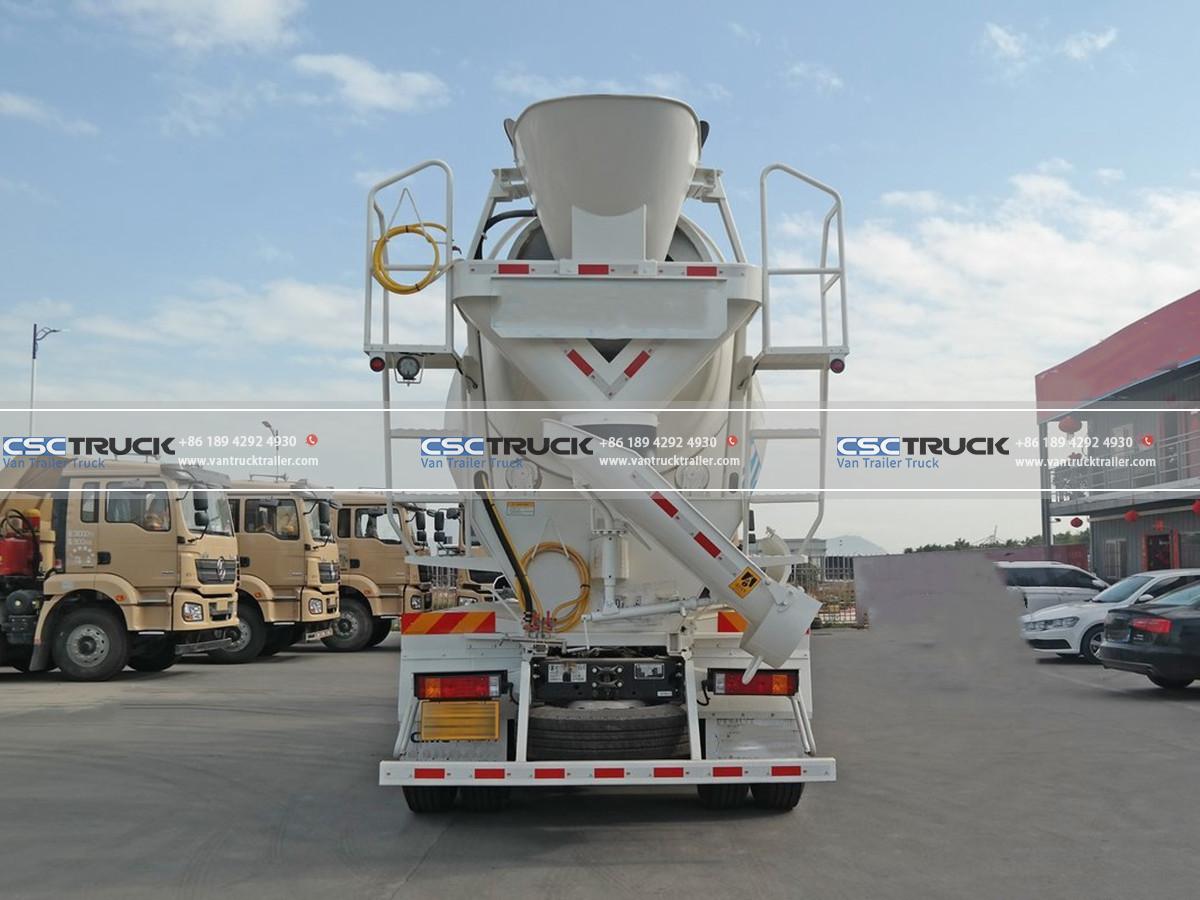

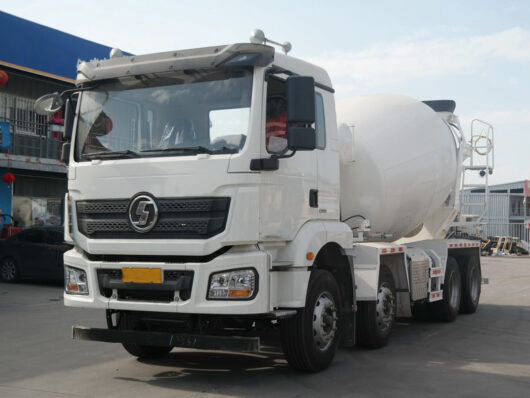

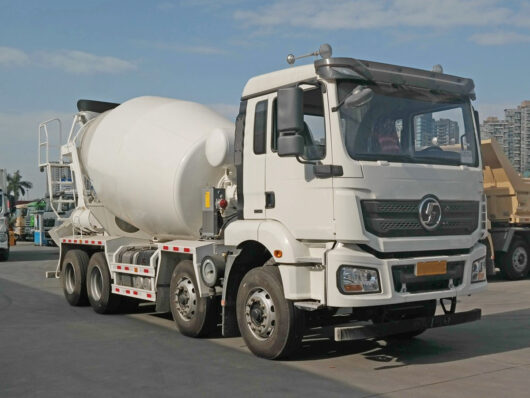

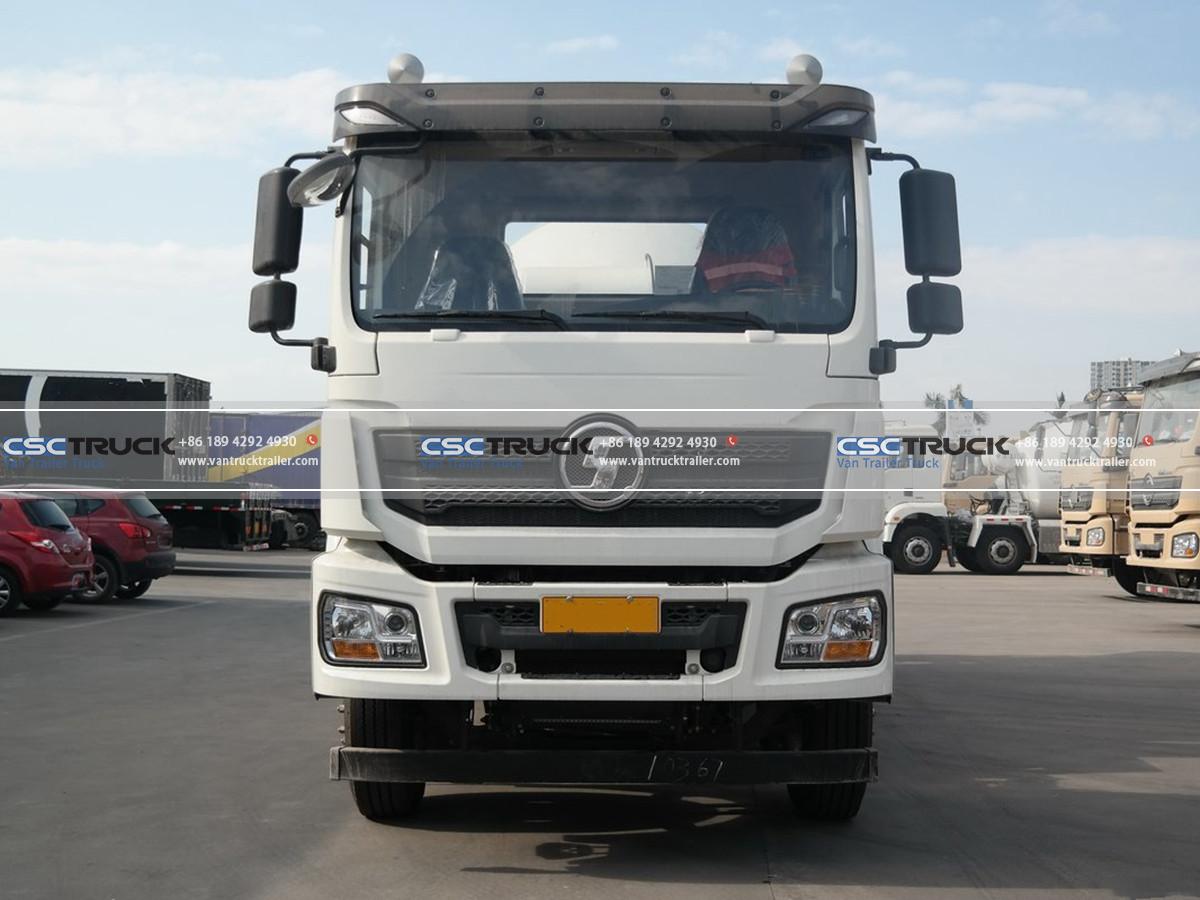

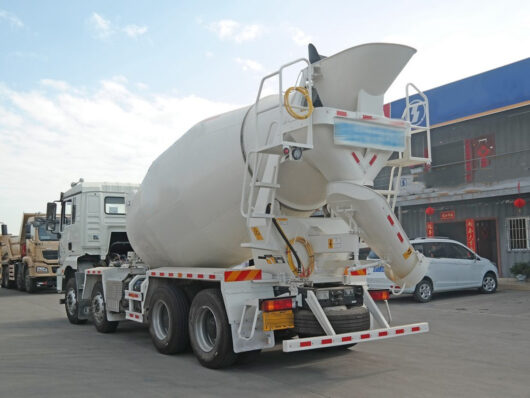

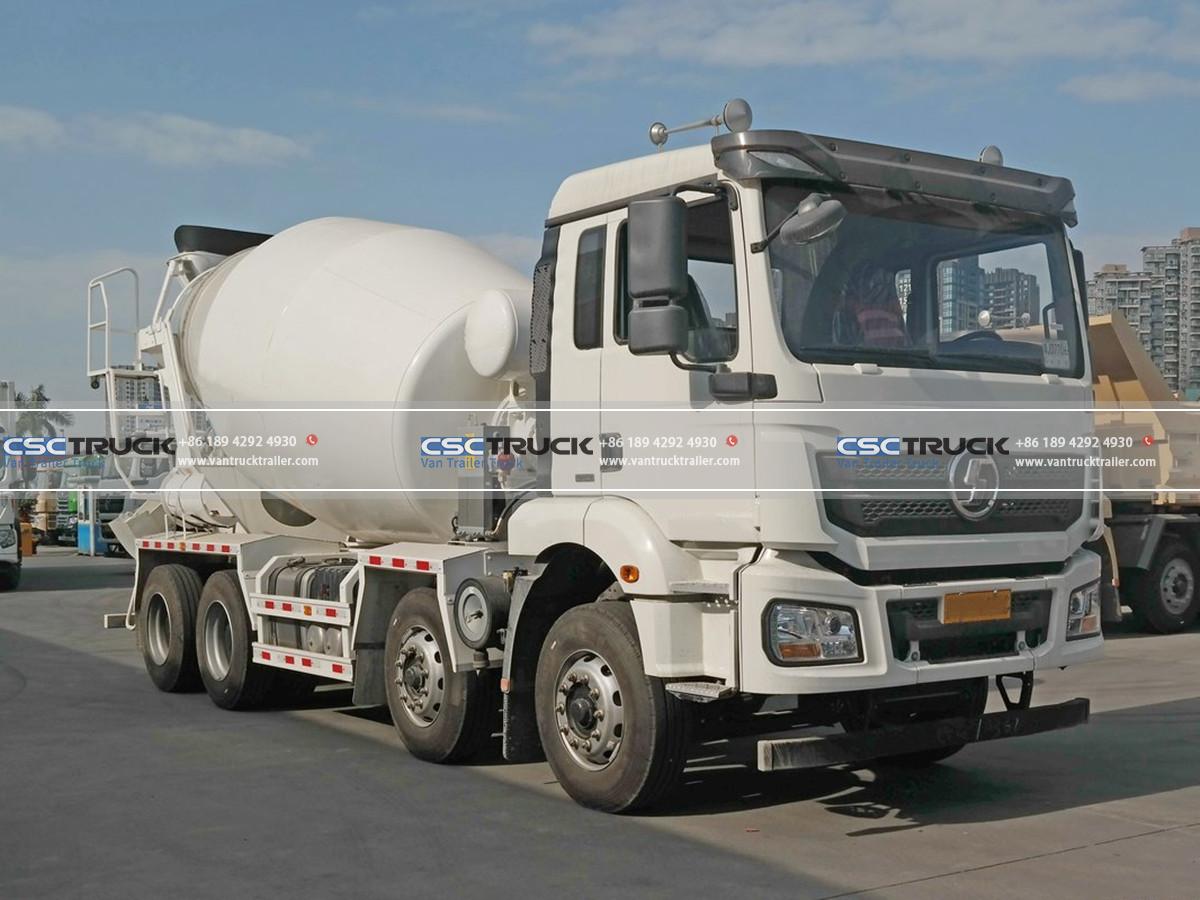

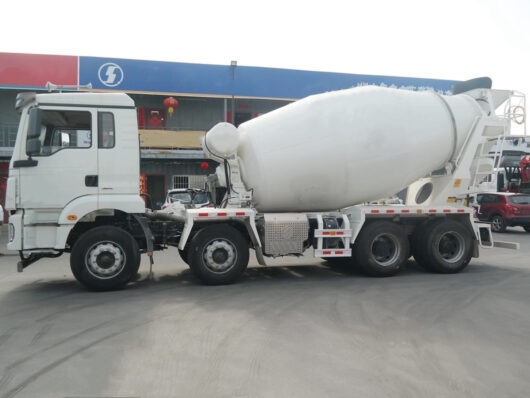

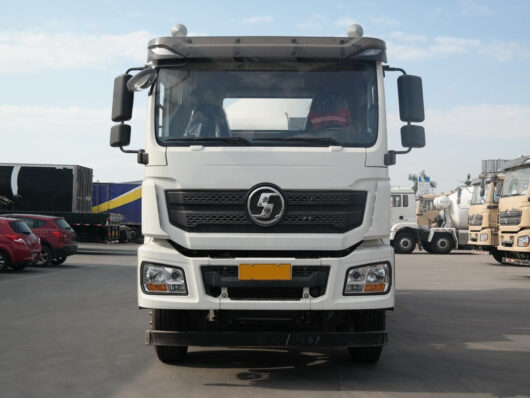

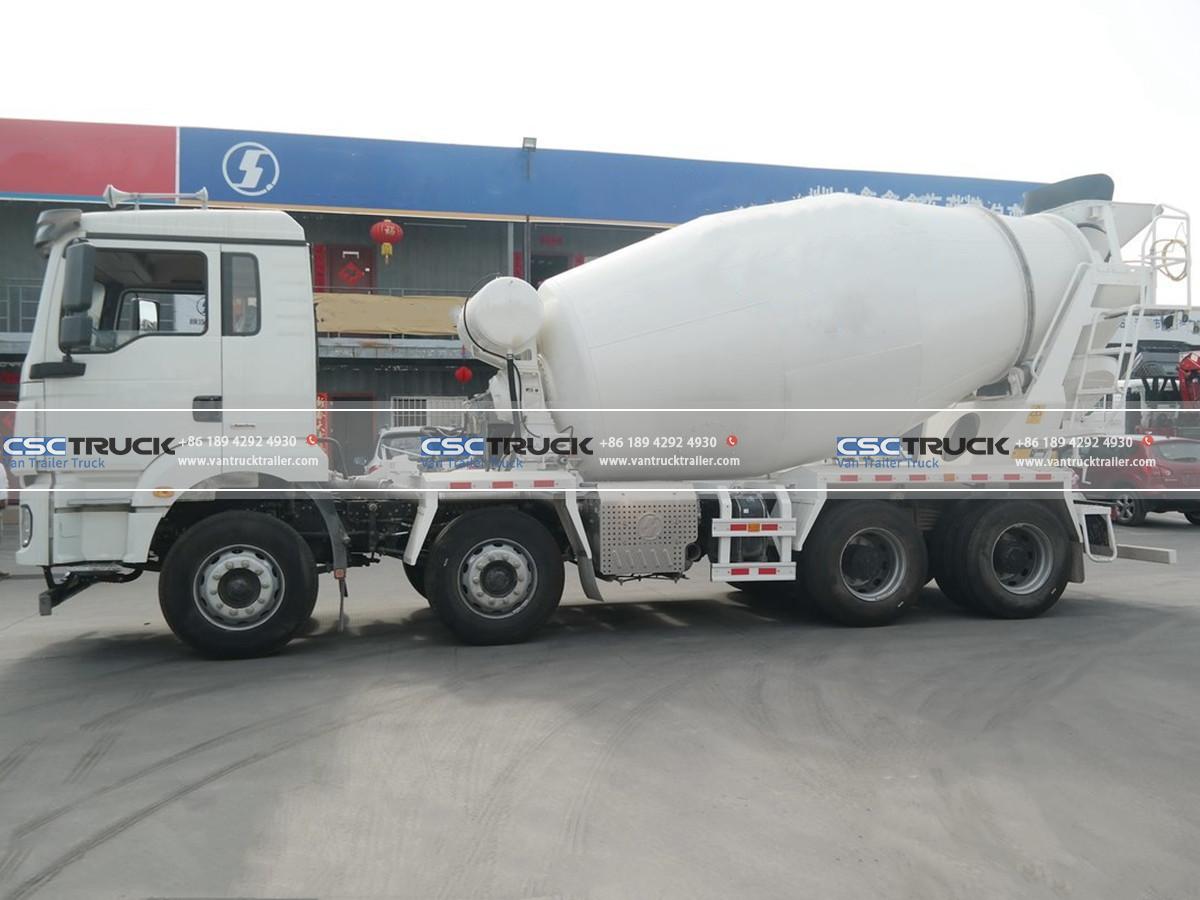

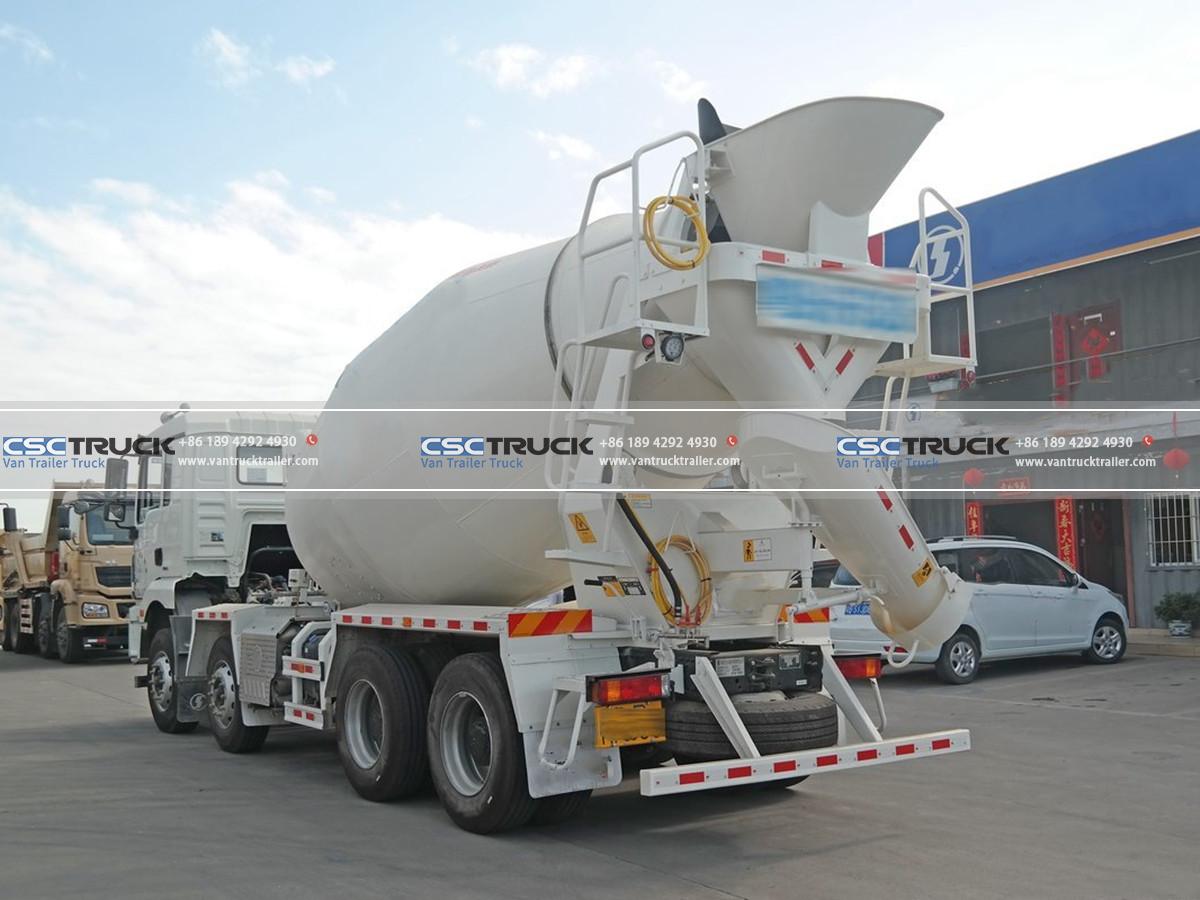

Unleash Unmatched Power, Deliver Efficiency: The Champion of Concrete Transportation
The Shacman 8 CBM Concrete Mixer Truck is the undisputed commander of concrete delivery. This robust and feature-rich vehicle is meticulously engineered to dominate even the most challenging construction projects, ensuring smooth concrete mixing and transportation on every job.
Unwavering Performance, Unmatched Terrain Capability
- 8X4 Drive Train: Conquer diverse road conditions with exceptional traction and control, easily navigating construction sites.
- Spacious Body Dimensions (10.25 x 2.55 x 3.995 meters): Maximize concrete volume, optimizing productivity on large-scale construction projects.
- Balanced Overhangs (1.525m Front / 2.525m Rear): Ensure stability during transport while maintaining maneuverability in tight spaces.
- Optimized Wheelbase (1800+3000+1400mm): Enhances load-bearing capacity and provides a balanced weight distribution for superior handling.
Heavy-Duty Hauling, Eco-Friendly Operations
- Rated Load Capacity of 16.37 Tons: Minimize trips and maximize efficiency by transporting substantial concrete volumes.
- Weichai WP10.336E53 Engine (247 kW / 336 HP): Delivers exceptional power for efficient concrete mixing and transportation, adhering to EURO II-VI emission standards.
Advanced Mixing Technology, Unwavering Reliability
- Spacious 7.49m³ Mixing Tank: Allows for efficient concrete mixing and transportation, meeting project demands.

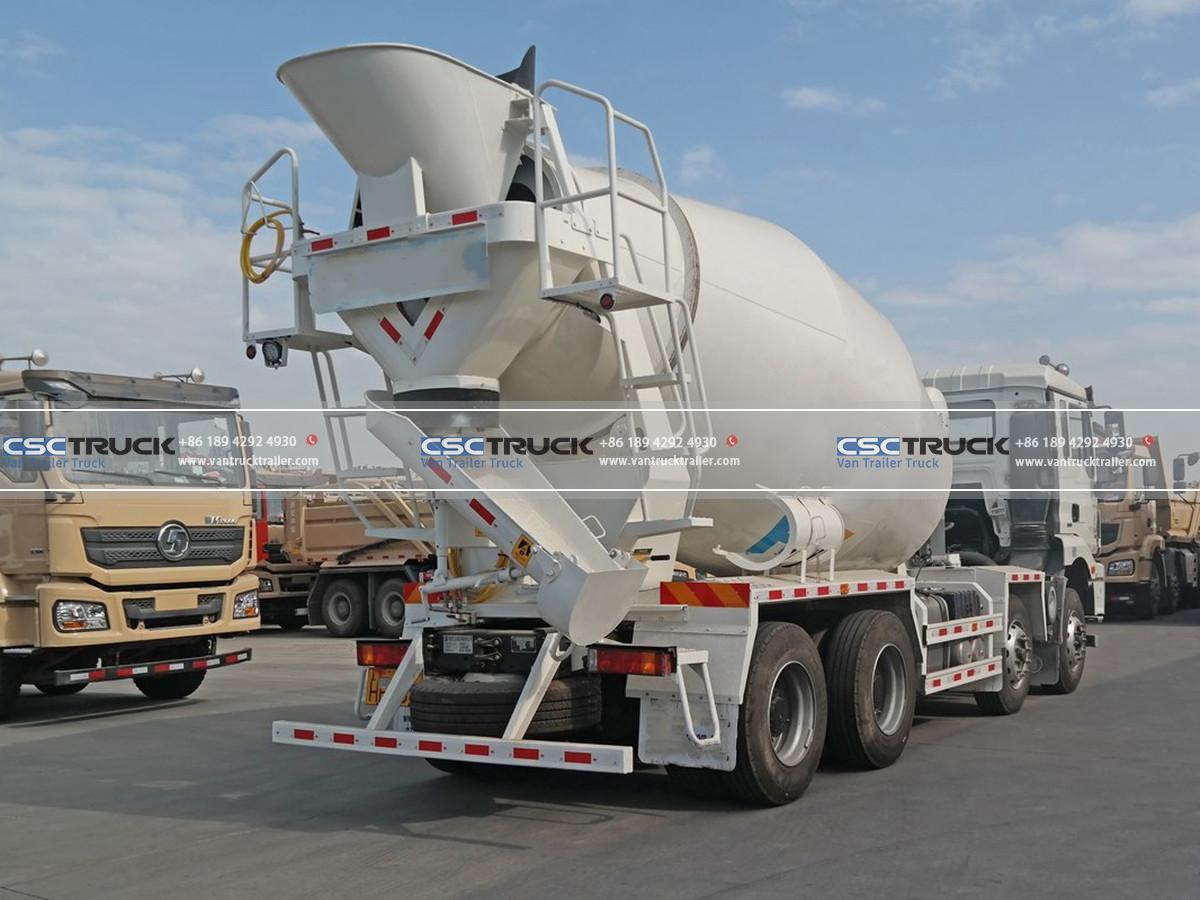

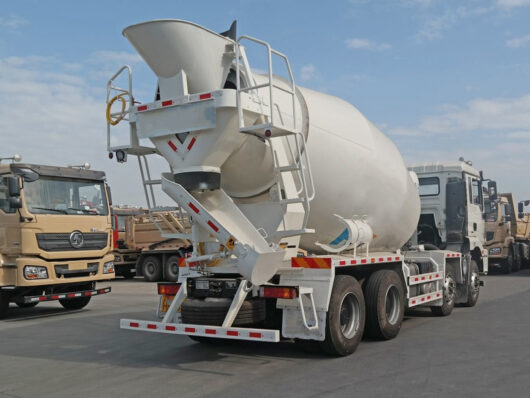

- CSCTRUCK VanTruckTrailer Upper Installation: Ensures high-quality and reliable concrete handling operations.
- Fast 10JSD140 Transmission (10 Gears): Provides smooth and precise gear shifting for optimal performance under various load conditions.
- Shacman SX5310GJBMB6 Chassis: Renowned for its robust construction, guaranteeing a safe and reliable driving experience even on uneven terrain.
- Durable 11.00R20 & 12.00R20 18PR Tires: Contribute to superior traction and grip on diverse surfaces, ensuring safe and efficient operations.
- Comprehensive Safety Features: Prioritize operator and bystander safety, adhering to industry standards and regulations.
Experience the unmatched power, unwavering reliability, and superior efficiency of the Shacman 8 CBM Concrete Mixer Truck. Master the mix and conquer every job site with the concrete transportation champion.
SPECIFICATIONS:
| Parameter | Details |
|---|---|
| Drive Type | 8X4 |
| Body Dimensions | 10.25×2.55×3.995 meters |
| Front Overhang/Rear Overhang | 1.525/2.525 meters |
| Wheelbase | 1800+3000+1400mm |
| Rated Load | 16.37 tons |
| Vehicle Weight | 14.5 tons |
| Maximum Speed | 80 km/h |
| Front Wheel Track | Front: 2036mm |
| Rear Wheel Track | Front: 2036mm; Rear: 1860mm |
| Engine Parameters | |
| Engine Model | Weichai WP10.336E53 |
| Fuel Type | Diesel |
| Number of Cylinders | 6 cylinders |
| Maximum Output Power | 247 kW |
| Maximum Horsepower | 336 horsepower |
| Displacement | 9.726L |
| Emission Standard | EURO Ⅱ, EURO Ⅲ, EURO Ⅳ, EURO Ⅴ, EURO Ⅵ |
| Engine Type | Water-cooled, four-stroke, with exhaust valve brake, direct injection, turbocharged intercooled, electronically controlled high-pressure common rail + SCR |
| Rated Speed | 1900 RPM |
| Upper Installation Parameters | |
| Vehicle Type | Concrete Mixer Transport Vehicle |
| Upper Installation Brand | CSCTRUCK VanTruckTrailer |
| Mixing Tank Capacity | 7.49m³ |
| Mixing Drum Geometric Capacity | Others |
| Cab Parameters | |
| Cab | – |
| Transmission Parameters | |
| Transmission Model | Fast 10JSD140 |
| Number of Gears | 10 gears |
| Chassis Parameters | |
| Chassis Model | SX5310GJBMB6 |
| Chassis Series | Shacman |
| Frame Size | – |
| Front Axle Description | – |
| Rear Axle Description | – |
| Speed Ratio | 4.8 |
| Number of Leaf Springs | 3/3/5 |
| Tires | |
| Number of Tires | 12 |
| Tire Specifications | 11.00R20, 12.00R20 18PR |
