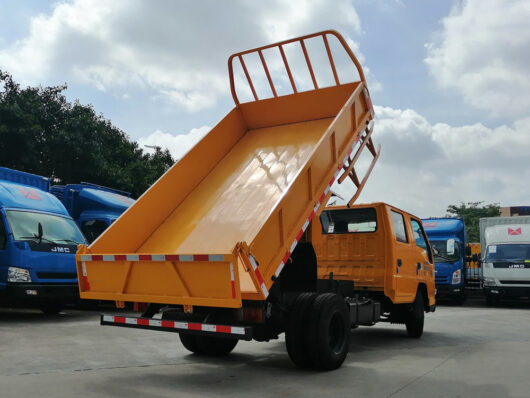

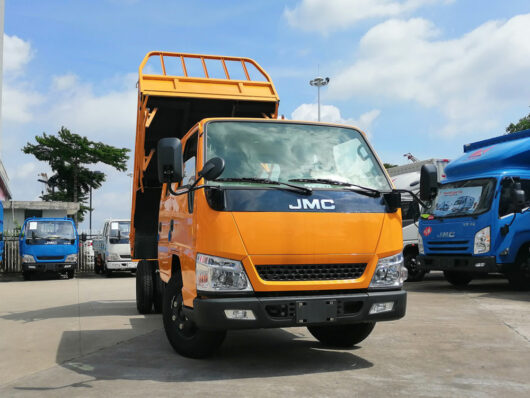

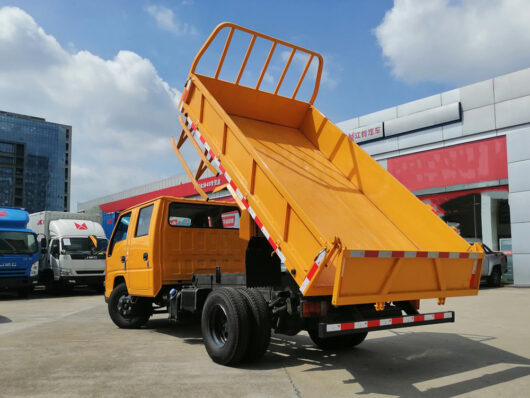

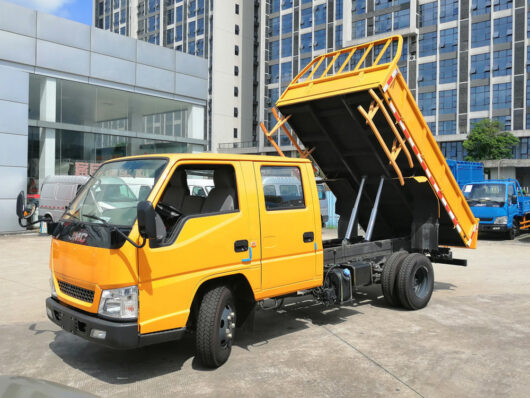

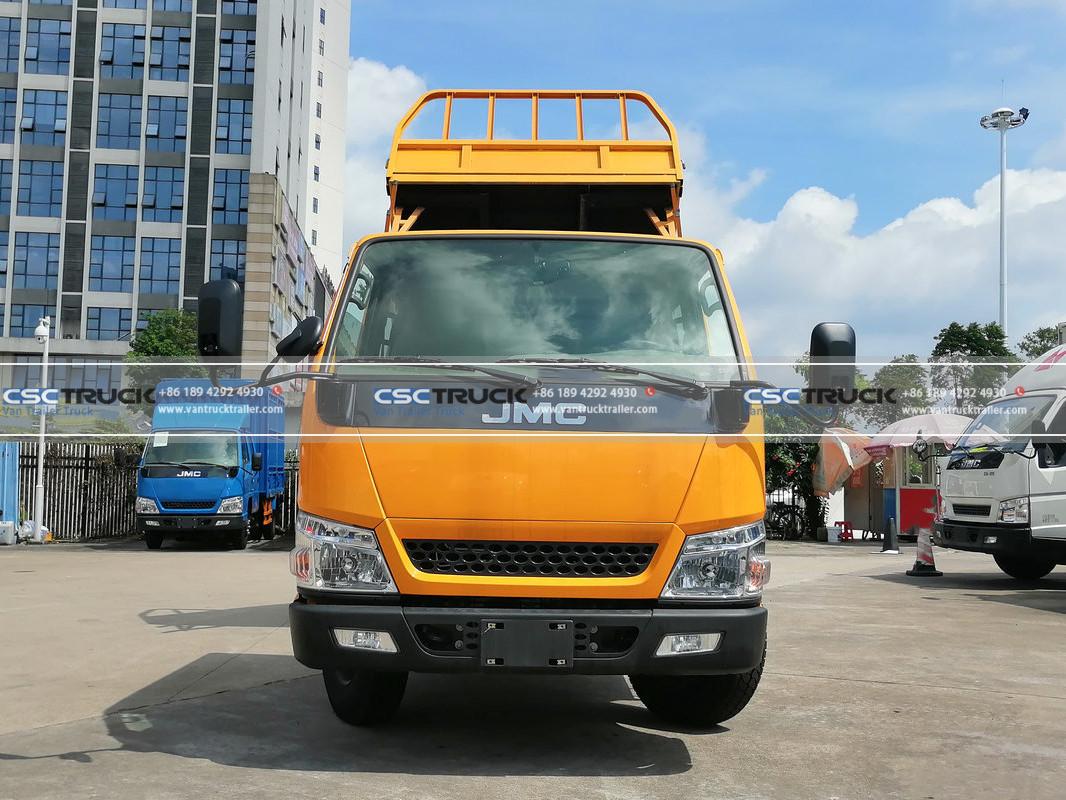

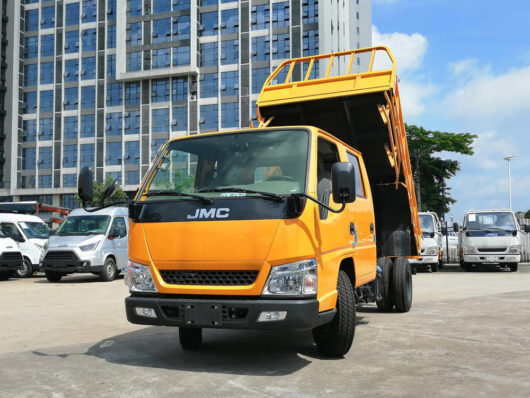

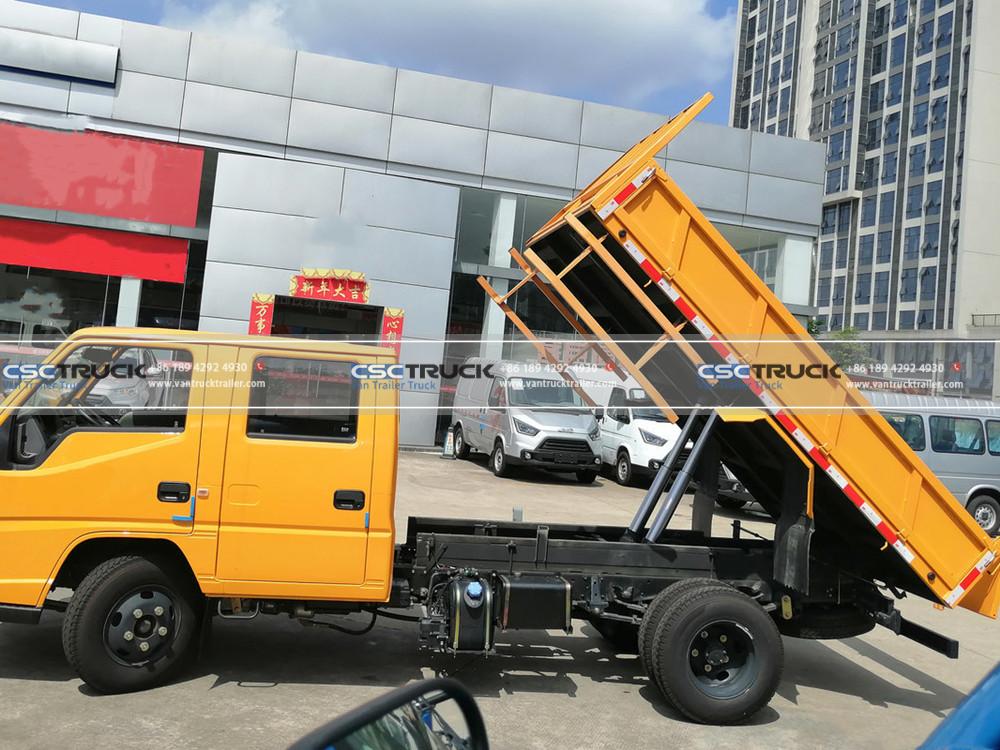

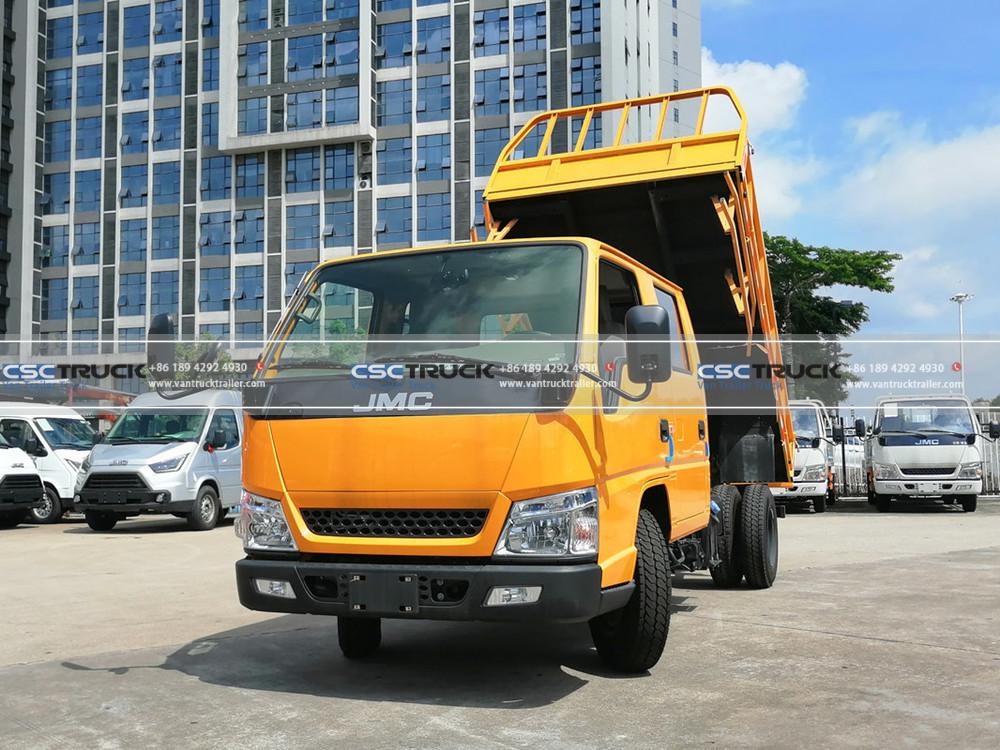

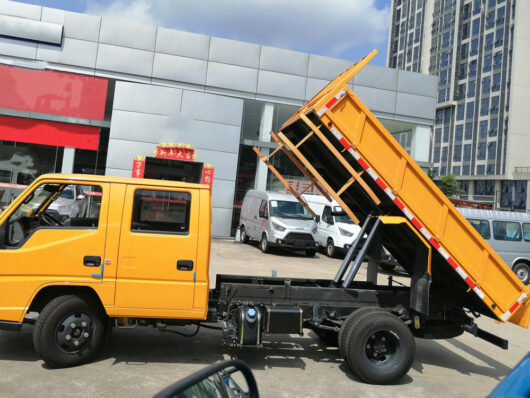

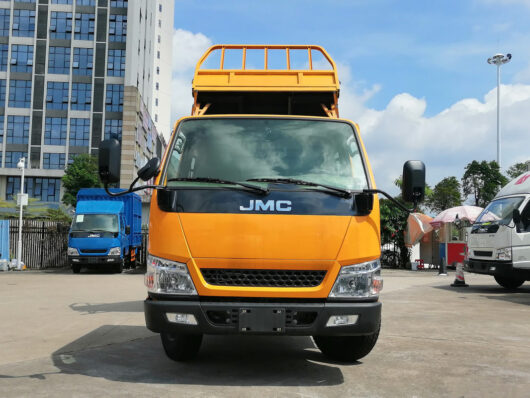

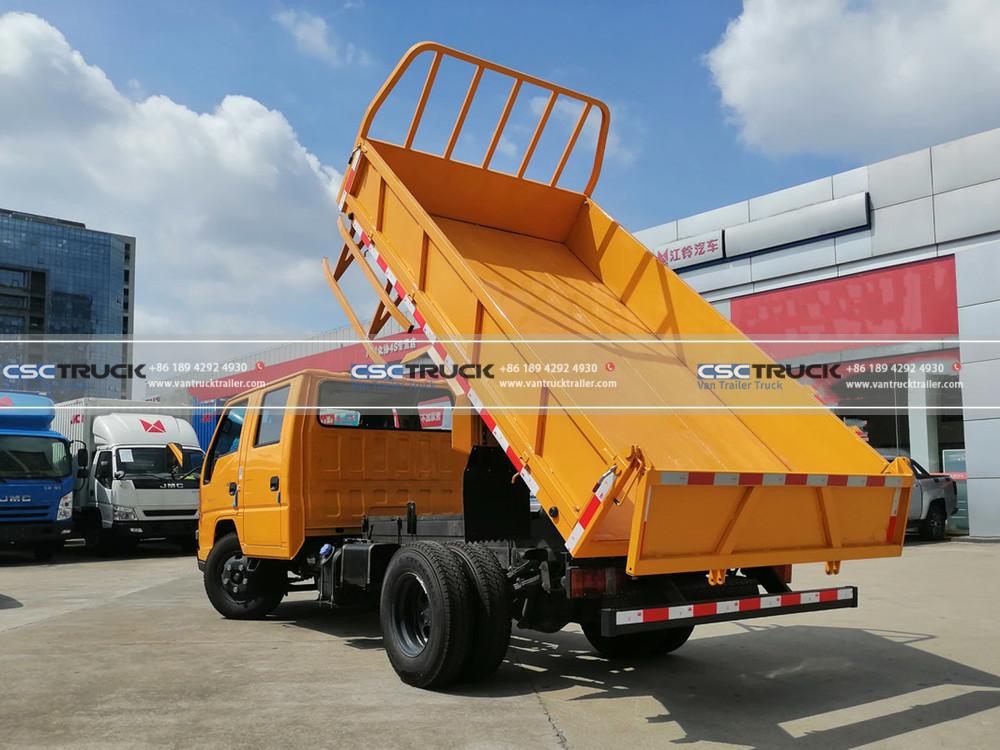

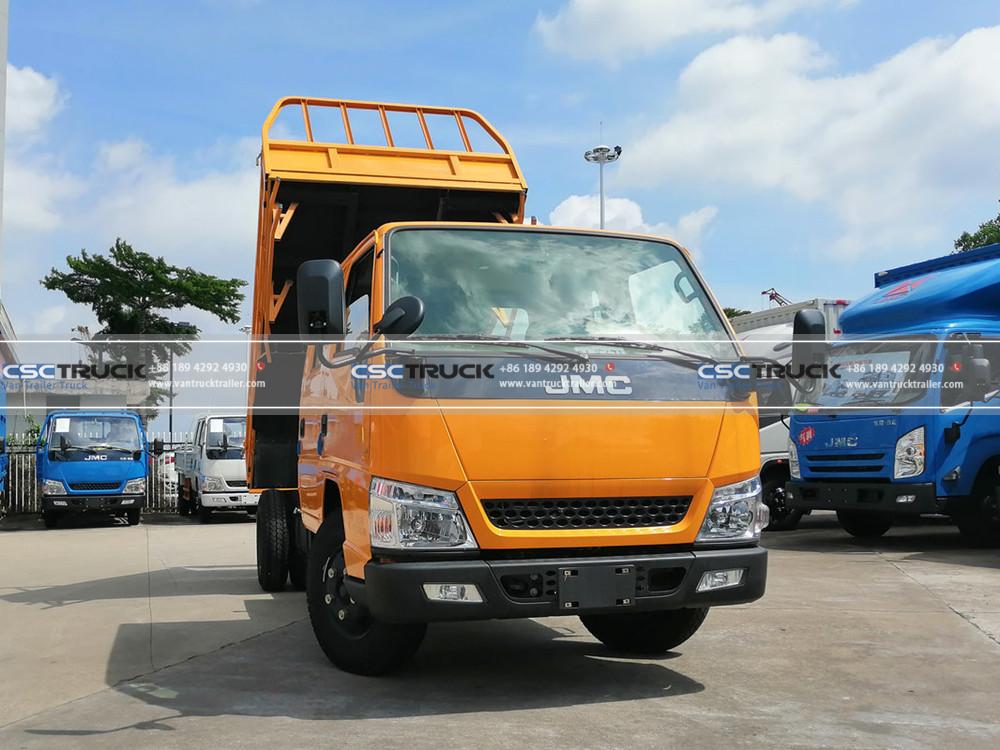

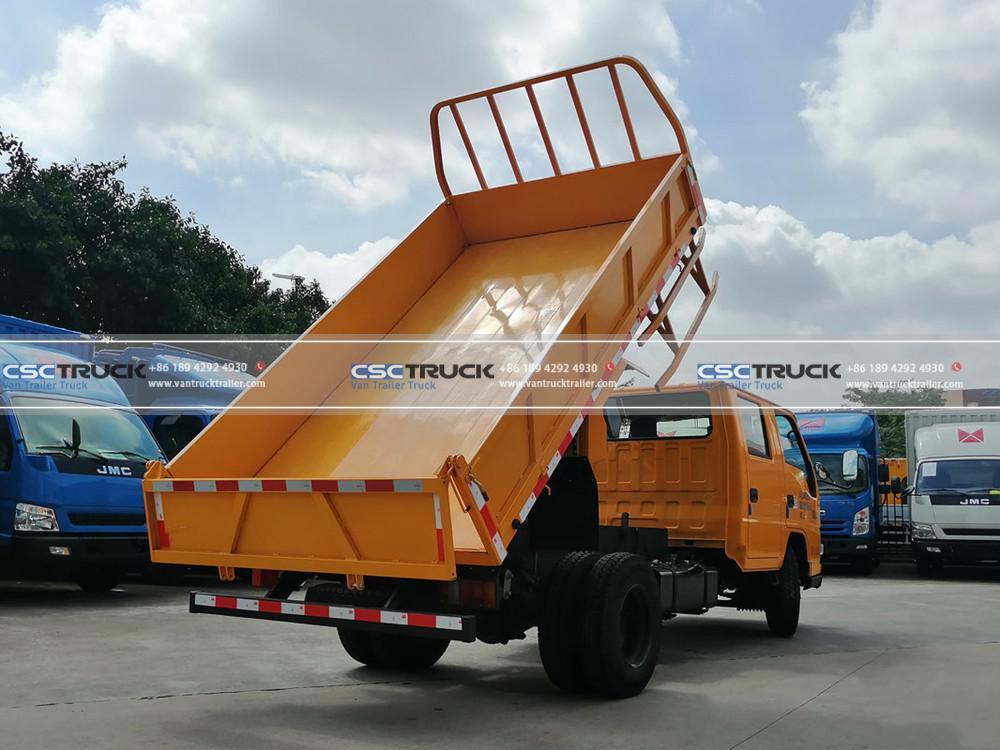

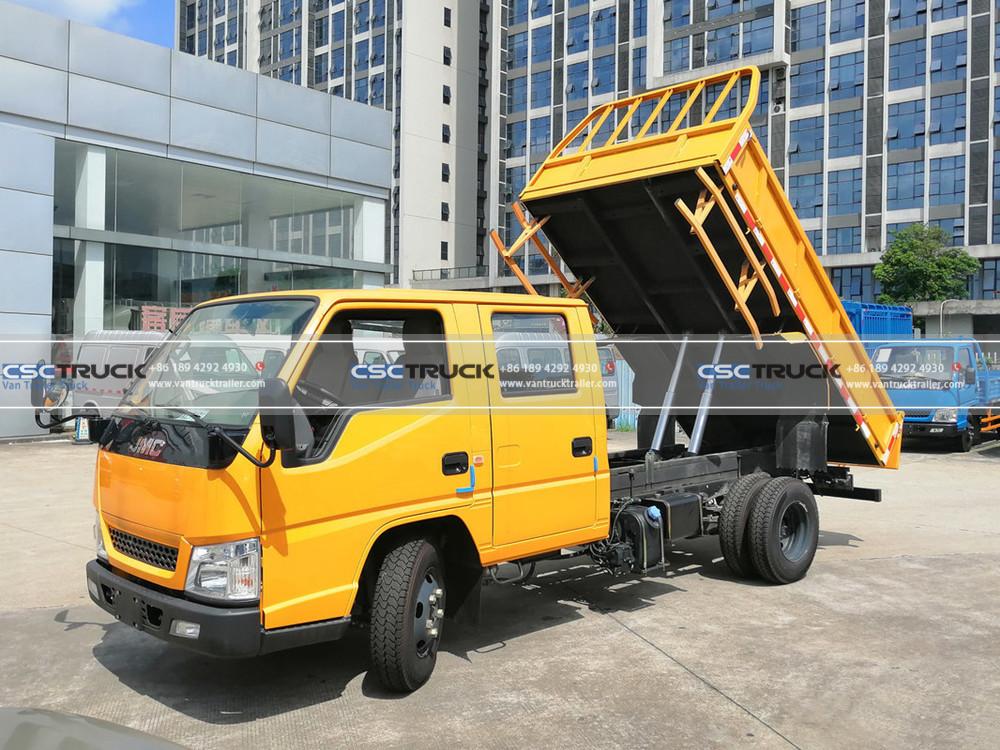

Introducing the JMC 2-Ton Urban Hauler: Your Compact Champion for Engineering Transport
The JMC 2-Ton dump truck is the versatile and efficient workhorse designed to tackle your engineering transport needs with ease. This meticulously engineered vehicle is built for exceptional maneuverability and handling, making it the perfect partner for urban construction projects and navigating tight spaces. With its powerful engine, sturdy construction, and operator-centric features, the JMC 2-Ton Urban Hauler is your key to maximizing productivity and efficiency on every job site.
Navigate with Confidence, Deliver with Efficiency
- 4X2 Drive Type: Experience exceptional maneuverability in urban environments, making light work of navigating tight streets and congested job sites.

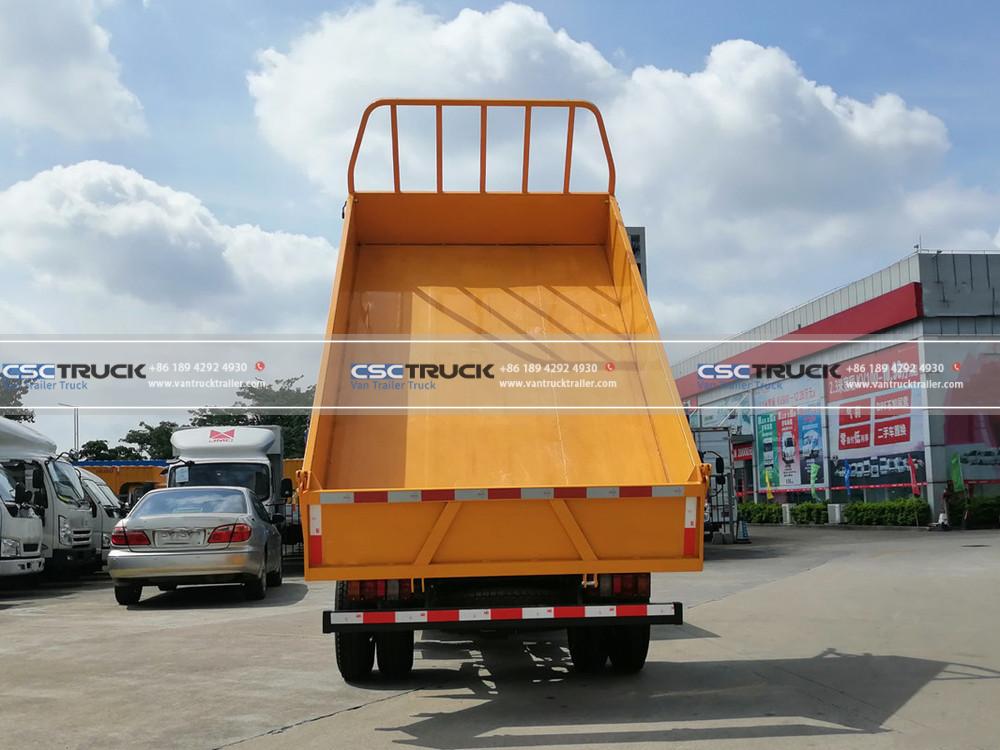

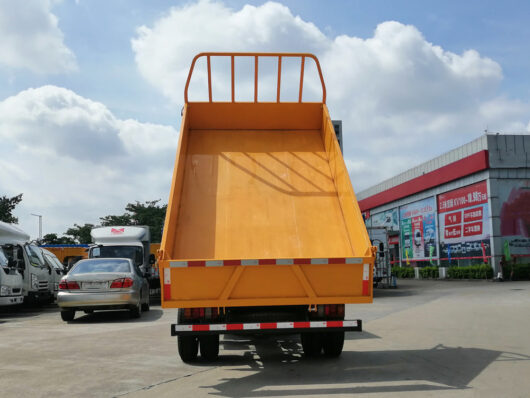

- Spacious Cargo Compartment (3.19m x 1.8m x 0.4m): Transport a wide variety of construction materials and equipment with ease, ensuring efficient loading and unloading operations.
Built to Perform, Engineered to Last
- Sturdy Construction (Nanchang-Made Quality): Experience the peace of mind that comes with a vehicle built in Nanchang, Jiangxi, a region renowned for its quality manufacturing standards in light trucks.
- Powerful Engine (JMCJX493ZLQ5 Engine – 116 HP): This reliable and fuel-efficient engine delivers exceptional performance, conquering inclines and hauling loads with ease, adhering to strict emission standards (EURO II-VI compliant).
Operator Comfort, Unwavering Safety
- Spacious Cab: Experience a comfortable working environment with ample space for the operator, even during long hauls. Configurable seating options allow for a customized fit.
- Smooth & Precise Transmission (JMCJC528 Transmission): Enjoy effortless gear changes and optimal power transfer for a smooth and efficient driving experience.
- Advanced Safety Features (ABS Anti-Lock Braking System): Prioritize safety with exceptional stopping power and control in any situation.
The JMC 2-Ton dump truck is more than just a dump truck – it’s a statement of versatility, efficiency, and urban prowess. Experience the maneuverability, innovative features, and operator-centric design that will help you conquer every job site with ease.
SPECIFICATIONS:
| Attribute | Value |
|---|---|
| Drive Type | 4X2 |
| Wheelbase | 3360mm |
| Body Length | 5.95 meters |
| Body Width | 1.895 meters |
| Body Height | 2.07 meters |
| Front Wheel Track | 1385mm |
| Rear Wheel Track | 1425mm |
| Vehicle Weight | 2.72 tons |
| Rated Load | 1.45 tons |
| Total Mass | 4.495 tons |
| Ton Level | Light Truck |
| Approach Angle | 27 degrees |
| Departure Angle | 15 degrees |
| Origin | Suizhou, Hubei |
| Sub-segment Market | Engineering Transport |
| Engine Parameters | |
| Engine Model | JMCJX493ZLQ5 |
| Engine Brand | JMC |
| Number of Cylinders | 4 cylinders |
| Fuel Type | Diesel |
| Displacement | 2.771L |
| Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
| Maximum Horsepower | 116 horsepower |
| Maximum Output Power | 85 kW |
| Maximum Torque | 285N·m |
| Maximum Torque Speed | 1800-2200rpm |
| Rated Speed | 3800rpm |
| Engine Type | |
| Cargo Compartment Parameters | |
| Cargo Length | 3.19 meters |
| Cargo Width | 1.8 meters |
| Cargo Height | 0.4 meters |
| Cargo Type | Dump |
| Cab Parameters | |
| Cab Width | |
| Number of Seats | |
| Transmission Parameters | |
| Transmission Model | JMCJC528 |
| Transmission Brand | JMC |
| Forward Gears | 5 gears |
| Reverse Gears | 1 gear |
| Shifting Method | |
| Fuel Tank | |
| Fuel Tank Material | Iron |
| Fuel Tank Capacity | 83L |
| Chassis Parameters | |
| Front Axle Allowable Load | 1720kg |
| Rear Axle Allowable Load | 2775kg |
| Speed Ratio | |
| Leaf Spring Number | 7/4+6, 7/5+6 |
| Tires | |
| Tire Specifications | 7.00R16LT 8PR |
| Number of Tires | 6 |
| Control Configuration | |
| ABS Anti-lock Braking System | Yes |
