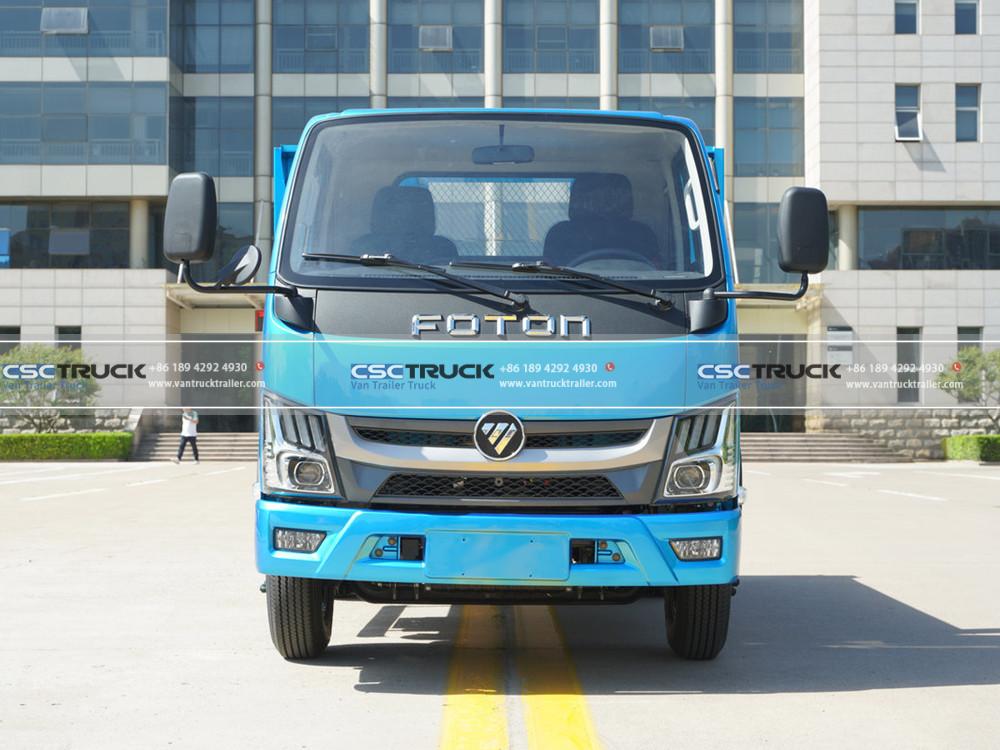

Conquer Every Job with Efficiency and Ease: Introducing the Foton 2-Ton Trailblazer

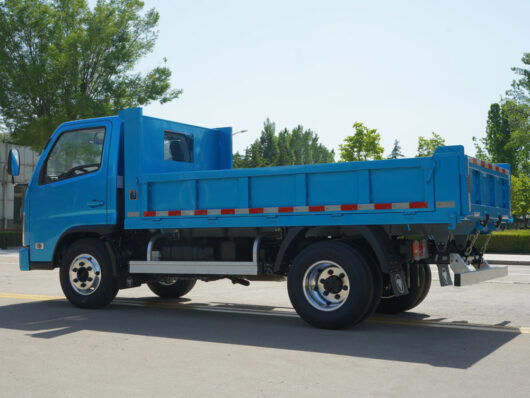

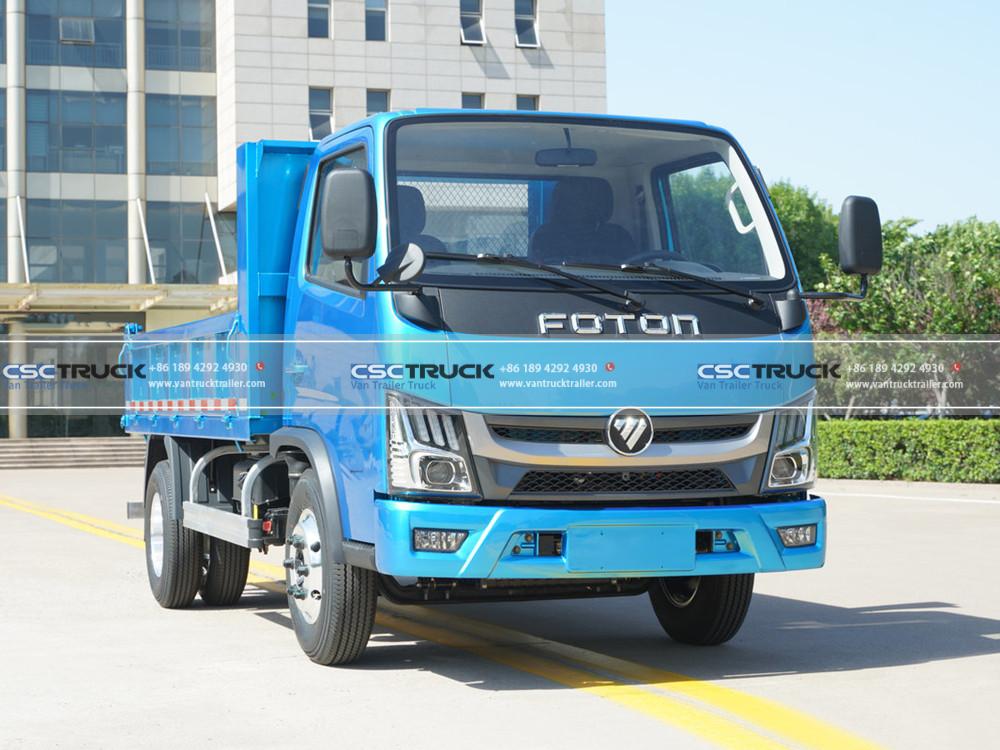

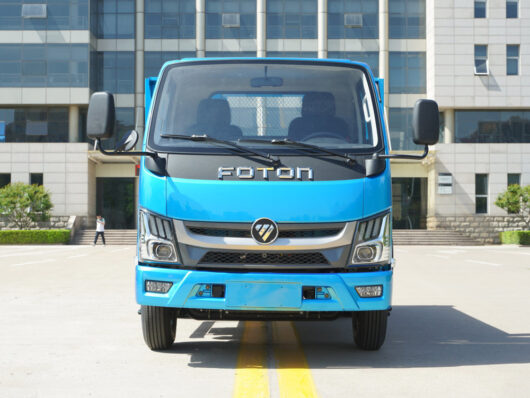

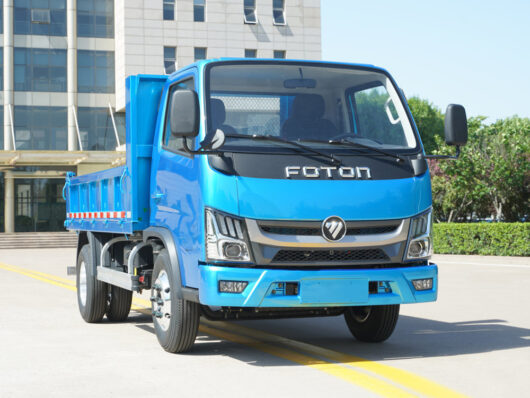

The Foton 2 ton dump truck is a compact workhorse designed to tackle your light-duty hauling tasks with efficiency and ease. This meticulously engineered machine is built to be your reliable partner, offering exceptional performance, convenient features, and a focus on long-term durability. Whether you’re navigating urban environments or tackling rural projects, the Foton 2-Ton Trailblazer is your key to maximizing productivity on every job.
Power Meets Efficiency: A Winning Combination
- Quanchai H20-120E60 Engine (Euro II-VI Compliant): This turbocharged inter-cooled engine delivers exceptional power and torque (120 HP, 325 N·m) while adhering to strict emission standards for a clean and efficient operation.
Versatile Cargo Handling

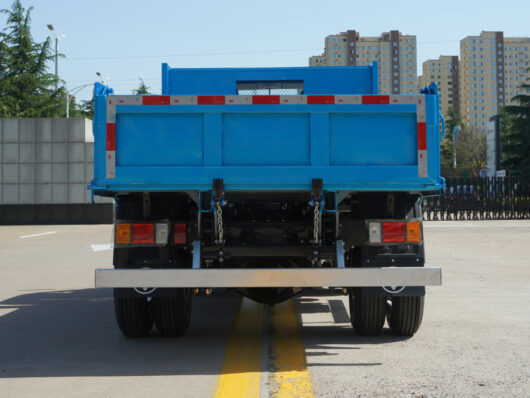

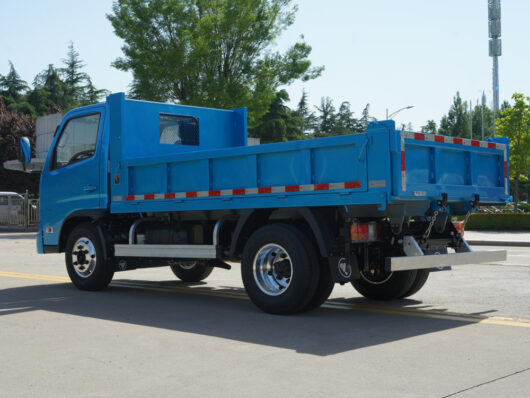

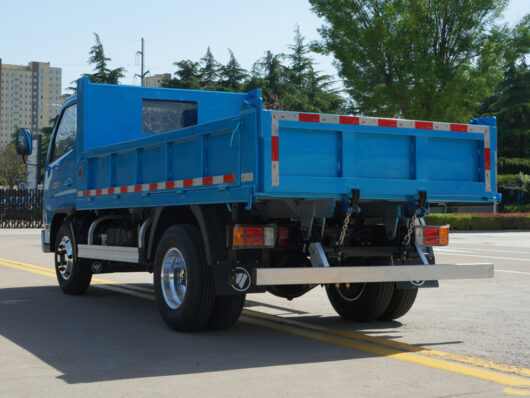

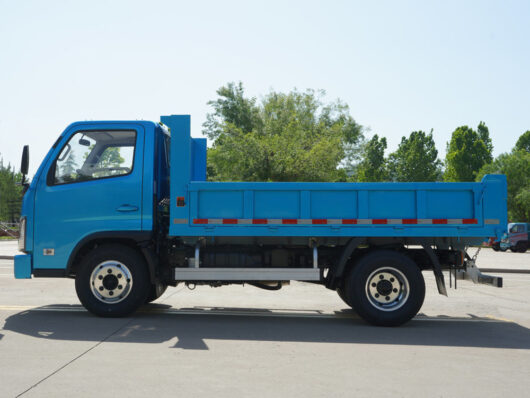

- Rear Dump Cargo (3.3m x 1.8m x 0.45m): Transport a wide variety of materials with ease. The double-top lifting form allows for quick loading and unloading, minimizing downtime and maximizing job site efficiency.
Built to Last, Engineered to Perform
- Sturdy Chassis (215×65×6-760mm Frame): Experience unwavering structural integrity and long-term reliability, ensuring the Foton 2-Ton Trailblazer can conquer any challenge.
- Heavy-Duty Axles: Confidently handle substantial loads with a front axle capacity of 1900kg and a rear axle capacity of 2590kg.
Comfort Meets Convenience
- Spacious Single-Row Cab (1730mm Width): Enjoy a comfortable working environment with ample space for the operator, even during long hauls.
Enhanced Control, Unwavering Safety
- Wanliyang WLY545CHF Transmission (5 Forward Gears / 1 Reverse Gear): Experience smooth gear changes and optimal power transfer for a comfortable and efficient driving experience.
- ABS Anti-Lock Braking System: Prioritize safety with reliable braking performance in any situation.
Convenience at Your Fingertips
- Power Windows, Remote Key, & Electronic Central Locking: Enjoy the added convenience and security features that make your workday a breeze.
- Durable Tires (7.00R16LT 8PR): Maintain excellent traction and stability on various road surfaces, ensuring a smooth ride no matter the terrain.
The Foton 2-Ton dump truck combines exceptional performance, unwavering durability, and convenient features into a compact and versatile package. Experience the hauling champion who will conquer every job with efficiency and ease.
SPECIFICATIONS:
Parameter | Value |
---|---|
General Information | |
Drive Type | 4X2 |
Wheelbase | 2800mm |
Body Length | 5.13 meters |
Body Width | 1.96 meters |
Body Height | 2.09 meters |
Front Wheel Track | 1535mm |
Rear Wheel Track | 1550mm |
Vehicle Weight | 2.72 tons |
Rated Load | 1.64 tons |
Total Mass | 4.49 tons |
Ton Level | Micro Truck |
Approach Angle | 19 degrees |
Departure Angle | 23 degrees |
Sub-segment Market | Road Transportation |
Engine Parameters | |
Engine Model | Quanchai H20-120E60 |
Engine Brand | Quanchai |
Number of Cylinders | 4 cylinders |
Fuel Type | Diesel |
Displacement | 2L |
Emission Standard | EURO II, EURO III, EURO IV, EURO V, EURO VI |
Maximum Horsepower | 120 horsepower |
Maximum Output Power | 90 kW |
Maximum Torque | 325 N·m |
Maximum Torque Speed | 2000rpm |
Rated Speed | 3200rpm |
Engine Type | Inline four-cylinder, water-cooled, four-stroke, turbocharged intercooled, high-pressure common rail |
Cargo Compartment Parameters | |
Cargo Length | 3.3 meters |
Cargo Width | 1.8 meters |
Cargo Height | 0.45 meters |
Cargo Type | Rear dump |
Upper Installation Parameters | |
Lifting Form | Double top |
Cab Parameters | |
Cab | Single row |
Cab Width | 1730mm |
Number of Seats | |
Main Driver Seat Type | |
Transmission Parameters | |
Transmission Model | Wanliyang WLY545CHF |
Transmission Brand | Wanliyang |
Forward Gears | 5 gears |
Reverse Gears | 1 gear |
Shifting Method | |
Fuel Tank | |
Fuel Tank Capacity | |
Chassis Parameters | |
Frame Size | 215×65×6-760mm |
Front Axle Allowable Load | 1900kg |
Rear Axle Description | 1068C |
Rear Axle Allowable Load | 2590kg |
Speed Ratio | |
Number of Leaf Springs | 3/8+5 |
Tires | |
Tire Specifications | 7.00R16LT 8PR |
Number of Tires | 6 |
Control Configuration | |
ABS Anti-lock Braking System | Yes |
Internal Configuration | |
Power Windows | Yes |
Remote Key | Yes |
Electronic Central Locking | Yes |
