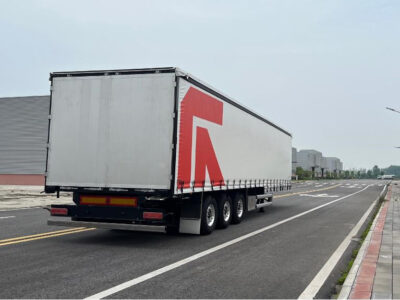

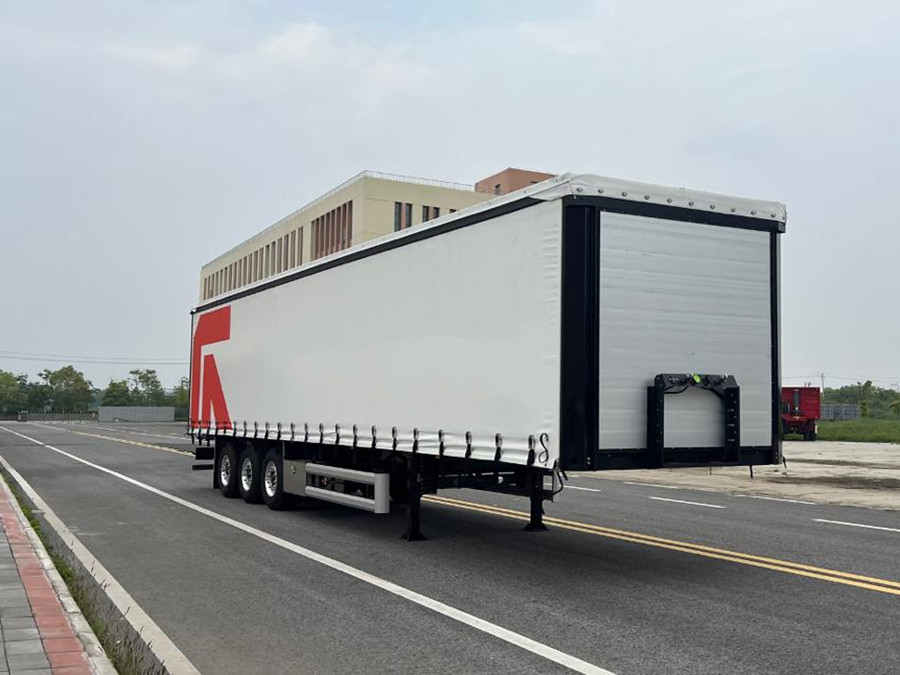

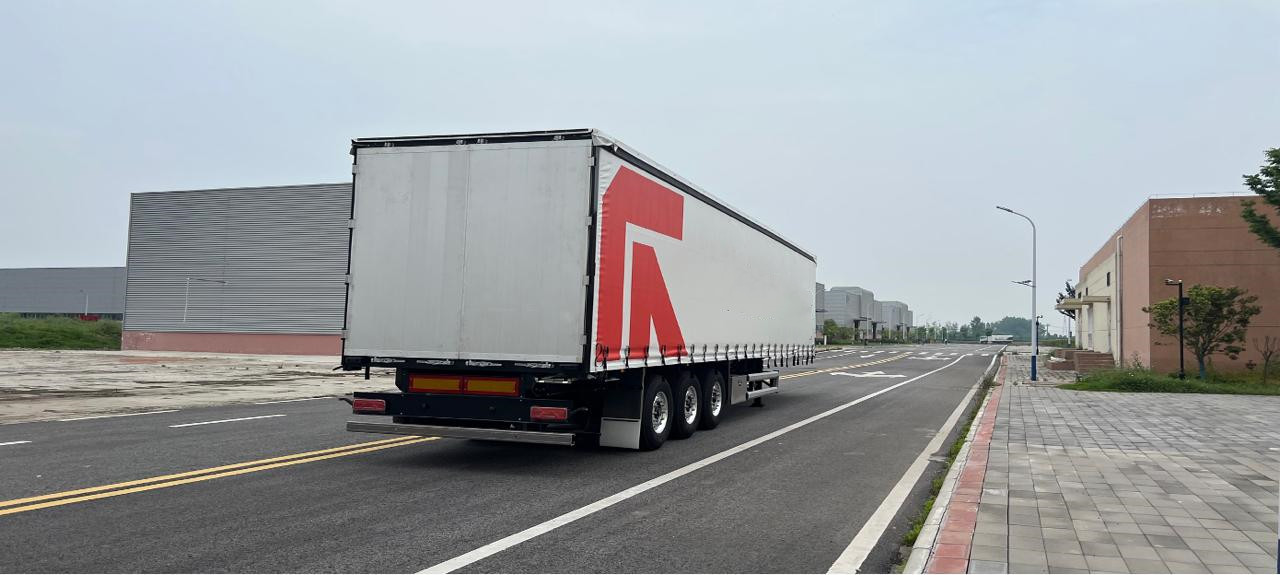

CSCTRUCK 40 Ton Side Curtain Trailer
The CSCTRUCK 40 Ton Side Curtain Trailer is designed to offer a combination of the best features found in both flatbed and enclosed trailers. This innovative solution uses durable, flexible PVC-coated vinyl side curtains, which can be conveniently retracted from either the front or rear. This allows for ease of loading and unloading, while the van-style rear doors ensure that the trailer is fully enclosed, providing weatherproof protection and security for all types of cargo. From expensive automobiles to raw lumber and delicate manufacturing components, this side curtain trailer is highly versatile, making it an ideal choice for various transport needs.
Key Features
Overall Dimensions & Capacity
The CSCTRUCK 40 Ton Side Curtain Trailer is built with robust dimensions to handle substantial loads. With an overall length of 13,620mm, width of 2,550mm, and height of 4,150mm, it offers ample space for transporting goods. Its curb weight is 7 tons, with an impressive payload capacity of 40 tons, making it a heavy-duty solution for demanding logistics operations.

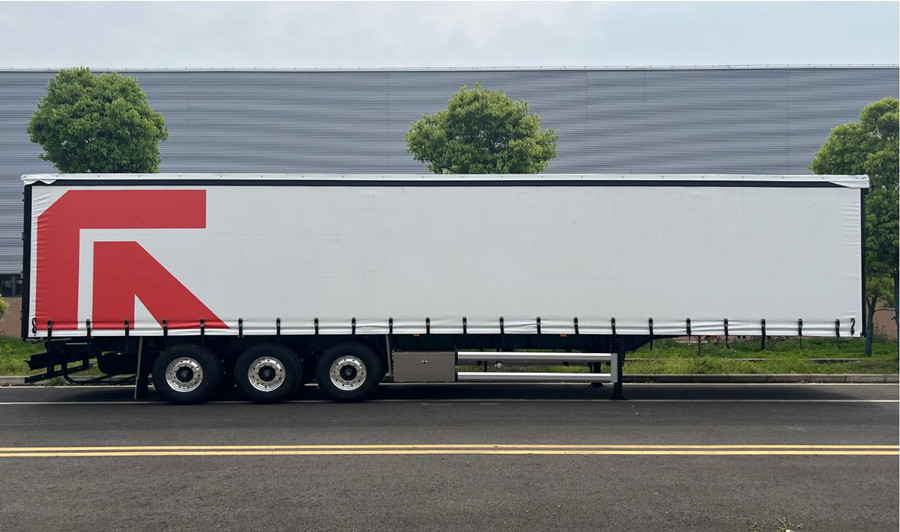

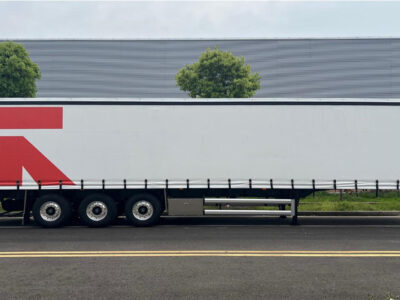

Body Construction
The trailer’s body construction ensures durability and resilience. The top features reinforced PVC curtains, equipped with a sliding mechanism that allows movement from end to end for easy access to the cargo. The side walls are made of 900g/㎡ PVC curtains, supported by sliding columns and cargo block bars made of aluminum profiles. Both the front and rear walls are constructed with aluminum, ensuring lightweight strength and corrosion resistance. The bottom is fitted with moisture-proof plywood, designed to withstand challenging weather conditions and heavy-duty usage.
Chassis & Suspension
The chassis of the CSCTRUCK 40 Ton Side Curtain Trailer is built with high tensile steel and features a hot-rolled H-beam design, ensuring superior strength and durability. The suspension is equipped with BPW AIR SUSPENSION, providing stability and smooth operation, even when carrying heavy loads. It also features BPW axles with a 12,000kg rating, ensuring reliable performance and safety. Additionally, the JOST 28T AC300 landing gear supports the trailer’s load with heavy-duty low profile sand shoes, offering easy maneuverability during coupling and decoupling.
Brakes & Tires
Safety is paramount in the design of the CSCTRUCK 40 Ton Side Curtain Trailer, with advanced brake technology from WEBCO EBS providing efficient stopping power. The disc brakes ensure superior braking performance, while the Triangle 385/65 R22.5 tires offer exceptional traction and durability. The trailer is also equipped with 7 aluminum wheels and a spare tire base, ensuring optimal performance on a wide range of surfaces and conditions.
Toolbox & Accessories
The trailer comes with 2 aluminum toolboxes, offering ample storage for tools and other essential equipment. Side guards made of aluminum provide added safety, and the 7-pin 24V electrical connector ensures seamless integration with a range of vehicles, complying with SAE regulations.
Paint & Corrosion Protection
All steel components are shot-blasted to remove any contaminants before being coated with a zinc epoxy primer for superior corrosion protection. The final finish is a urethane topcoat, ensuring long-lasting protection against the elements and extending the lifespan of the trailer.
This side curtain trailer from CSCTRUCK Van Truck Trailer is a highly versatile and durable solution designed for a variety of cargo types, offering both security and flexibility. With its state-of-the-art chassis, robust suspension, and premium materials, it is the ideal choice for operators seeking a reliable and efficient trailer for demanding transportation needs.
SPECIFICATIONS:
| Category | Details |
|---|---|
| Overall Dimensions | 13620 x 2550 x 4150 mm |
| Curb Weight | 7 Tons |
| Payload Capacity | 40 Tons |
| Wheelbase | 7105 + 1310 + 1310 mm |
| Fifth Wheel Height | 1150 mm |
| Body Construction | |
| – Top | Made of reinforced PVC curtains with sliding mechanism, moved from end to end |
| – Side Wall | 900g/㎡ PVC curtain + Sliding column + cargo block bar |
| – Front Wall | Aluminum front wall |
| – Rear Wall | Aluminum rear wall |
| – Bottom | Moisture-proof plywood 27mm; non-slip, moisture-proof |
| – Sliding Column | European style sliding column, 4 units each side |
| – Cargo Block Bar | Aluminum profiles, 5 units each side |
| Chassis | |
| – Main Beam | High tensile steel, hot rolled H-beam, 450 mm deep |
| – Flange & Web | 10/12mm up/down flange and 8mm web |
| – Crossmembers | Fabricated channel with gussets integrated |
| – Upper Coupler | All high tensile steel construction with SAE2” king pin. All interior walls of closed sections coated for superior corrosion protection |
| Axles | BPW, 12000kg x 3 rating |
| Landing Gear | JOST 28T AC300 with heavy-duty low profile sand shoe |
| Suspension | BPW AIR SUSPENSION |
| Brakes | Disc brake WEBCO EBS |
| Wheel & Drums | 22.5 x 17.5 (16mm), 7 units aluminum |
| Tires | Triangle 385/65 R22.5 |
| Spare Tire Base | 1 unit |
| Toolbox | 2 sets aluminum |
| Side Guard | Aluminum |
| Lights & Wiring | 7-pin 24 volt connector according to SAE, regulation LED lamps |
| Paint | All steel parts shot-blasted, coated with a zinc epoxy primer and finished with urethane topcoat |
